Positive Materials Identification XRF Analyser
- Partner:UK Atomic Energy Authority
- Facility:Materials Research Facility (MRF)
- Availability:Available
Or call us now on 0161 275 8382
Detailed Description

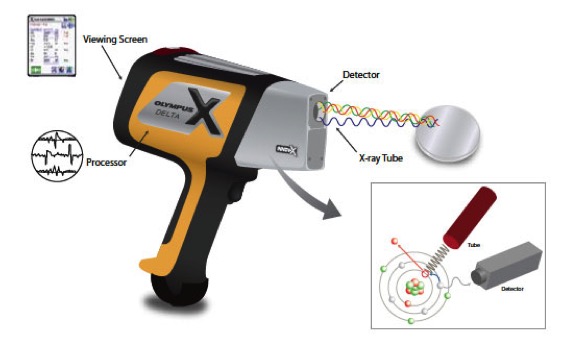

The Positive Materials Identification XRF Analyser is a handheld device that uses X-ray Fluorescence to determine the constituent chemical elements present in a piece of material.
Uses/Applications
The PMI-XRF Analyser provides specific material chemistry to rapidly and accurately identify alloy grades and pure metals. It provides alloy chemistry and grade ID in seconds, for applications from simple sorting to challenging grade separations, from incoming material inspection to end-product verification.
Olympus DELTA premium
Excitation range: 4W X-ray tube with Ag, Rh, Au or Ta anode
Detector: Silicon Drift Detector
Analytical range: Mg and up for Rh/Ag and Al and up for Ta/Au
Environmental Temperature range: -10°C to 50°C
Data display: 32 bit QVGA resolution, Blanview Transmissive blacklit touch screen
Data Storage: 1 Gb microSD
Data transfer: USB, Bluetooth
