Spectroscopic X-ray Imaging and Tomography System

Colour Bay

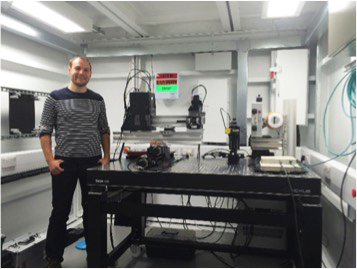

The “Colour Bay” is an in-house system designed as a flexible workbench for spectroscopic X-ray imaging and tomography. The spectroscopic capability enables chemical sensitivity combined with 2D or 3D imaging. The bay is principally designed for X-ray fluorescence imaging using a pinhole camera arrangement, and linear and rotation motors (various sizes) are available for flexible experimental set-ups.

Specification

Scan times typically 5-10mins per projection with full 3D scan taking up to 24hrs

Spatial resolution in range of 20-200 microns

Reconstructed voxel size 10 microns to 1mm

X-ray source: 225kV, 1800W (Tungsten target)
